Training Strategy

IPSL-AID can be employed for both regional and global training. In the global setting, spatial blocks are drawn freely across the entire domain, whereas in the regional setting the sampling is constrained so that every block lies entirely inside one of the user-specified regions.

Random Block Sampling for global training

Training is performed globally, using a random block strategy:

  • Spatial blocks are randomly sampled across the globe

  • Enables scalable training on very large climate datasets

  • Reduces memory footprint while preserving global coverage

  • Improves generalization across regions

This design allows a single model to learn global dynamics while remaining usable for regional inference.

During each training epoch, \(s\) spatial blocks of size \(144\times360\) are generated, with block centers placed randomly. The longitude of each block is treated as periodic, while the latitude is constrained within valid global boundaries.

_images/random_block_sampling.png

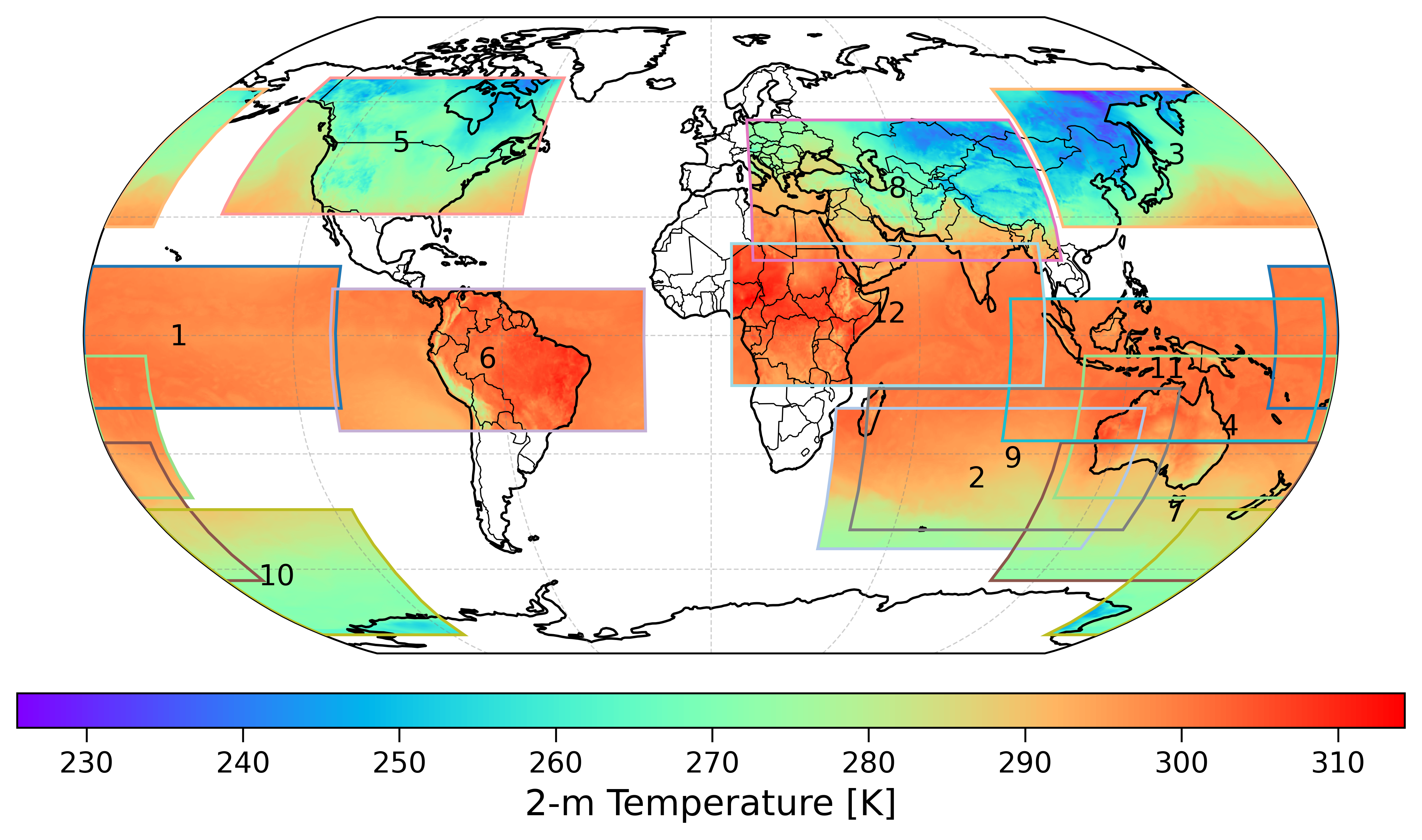

Example of randomly sampled spatial blocks used during training

Several values for the number of spatial blocks per epoch (\(s=6\), 9, and 12) were evaluated, and using 12 blocks was identified as an effective balance between computational efficiency and spatial diversity.

Multi-Region Random Block Sampling

IPSL-AID model can be trained on several regions simultaneously. In this case, the random block sampler is restricted so that every sampled block lies entirely inside one of the regions specified by the user. This prevents the model from being trained on blocks that straddle the boundary between a region and its surrounding area, or on blocks that fall in a region that is not part of the training domain.

The procedure relies on three ingredients:

  1. Global coordinate reference A global latitude/longitude grid (provided through global_coordinates_file) defines the reference frame in which random centers are drawn.

  2. Per-region validity bounds For each region, the set of valid block centers on the global grid is precomputed. A center \((i_{\text{lat}}, i_{\text{lon}})\) is valid for a region if a full block of size \(({\rm batch_{size}^{lat}, batch_{size}^{lon}})\) centered on it is entirely contained in that region. These bounds are cached once at initialization in valid_region_bounds.

  3. Rejection sampling At each training step, random centers are drawn uniformly on the global grid. A center is accepted only if it belongs to the valid bounds of at least one region, otherwise it is rejected and a new center is drawn. The region that contains the accepted center is stored alongside it, so that the corresponding regional dataset and its constant variables can be retrieved later.

Mathematically, a candidate center \((i_{\text{lat}}, i_{\text{lon}})\) is accepted if there exists a region \(r\) with valid latitude bounds \([i_{\text{lat}}^{\min,r}, i_{\text{lat}}^{\max,r}]\) and valid longitude bounds \([i_{\text{lon}}^{\min,r}, i_{\text{lon}}^{\max,r}]\) such that:

\[i_{\text{lat}}^{\min,r} \;\le\; i_{\text{lat}} \;\le\; i_{\text{lat}}^{\max,r} \quad\text{and}\quad i_{\text{lon}}^{\min,r} \;\le\; i_{\text{lon}} \;\le\; i_{\text{lon}}^{\max,r}.\]

If the candidate satisfies this condition, the sampler records both the global center and the index of the region \(r\). The block is then extracted from the regional dataset associated with \(r\), after mapping the global center back to the regional grid using get_center_indices_from_latlon. This guarantees that:

  • the block is spatially consistent with the region it belongs to;

  • the correct regional constants (topography, land–sea mask, …) are attached to the sample.

Coarse-Down-Up Procedure

A coarse-down-up procedure based on bilinear interpolation is applied to the full global field before spatial block extraction:

  1. Coarsen: The global high-resolution field \(\mathbf{y}^{\mathrm{HR}}_{\mathrm{global}}\) is reduced to \(143\times144\), corresponding to the native spatial resolution of the IPSL CMIP6 fields.

  2. Upscale: The coarse global field is interpolated back to the ERA5 grid resolution of \(721\times1440\), yielding \(\mathbf{y}^{\mathrm{CU}}_{\mathrm{global}}\).

  3. Split into blocks: Matching spatial blocks are extracted from both \(\mathbf{y}^{\mathrm{HR}}_{\mathrm{global}}\) and \(\mathbf{y}^{\mathrm{CU}}_{\mathrm{global}}\) using the same spatial indices.

  4. Residual: Fine-scale information \(\mathbf{R} = \mathbf{y}^{\mathrm{HR}} - \mathbf{y}^{\mathrm{CU}}\) serves as training target

Conditioning Inputs

The model is conditioned on:

  1. Coarse-up fields: Low-resolution approximations

  2. Geographical variables: Latitude, longitude, topography (\(z\)), land-sea mask (LSM)

  3. Temporal information: Cosine-sine representations of day of year and hour of day

_images/workflow_IPSL_AID.jpg

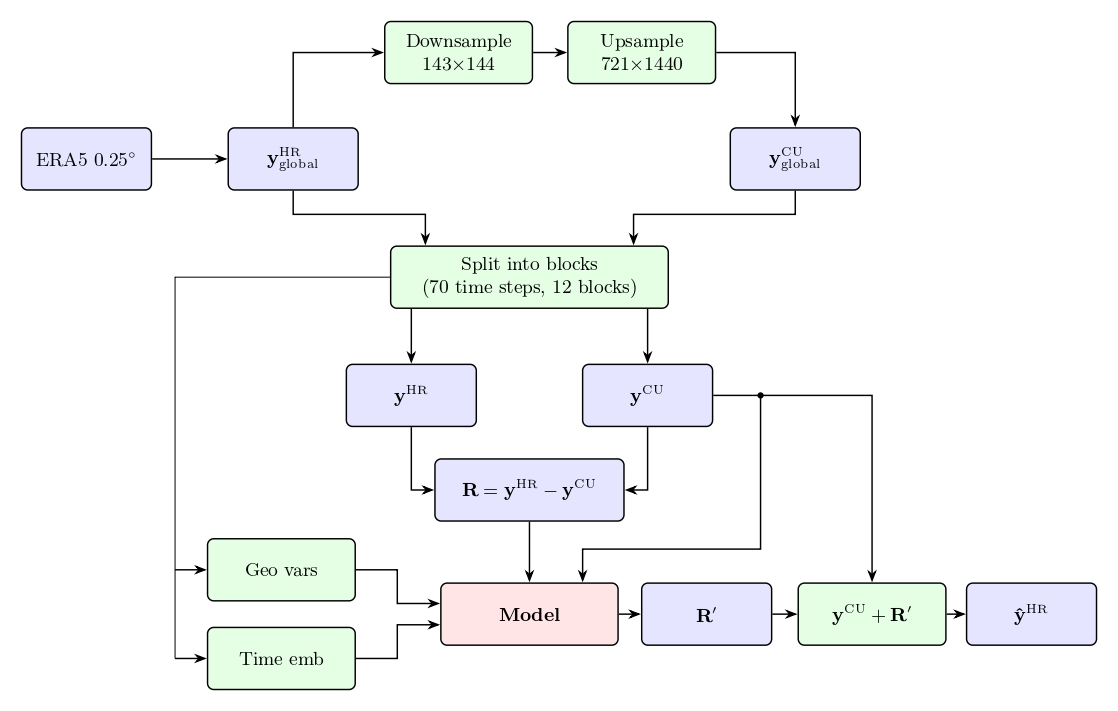

Workflow of IPSL-AID’s training process.

Training Schedule

  • Dataset: ERA5 2015-2019 (train), 2020 (validation), 2021 (test)

  • Batch size: 70 (optimized for 4× NVIDIA A100 64GB)

  • Epochs: 50

  • Optimizer: Adam with learning rate scheduling

  • Validation: Every epoch on held-out year

Computational Requirements

  • GPUs: 4× NVIDIA A100 (64 GB each)

  • Time: ~6 days for full training

  • Memory: ~200GB GPU memory during training

  • Storage: Sufficient space for datasets and checkpoints

Hyperparameter Tuning

Key hyperparameters:

  1. Learning rate: Typically \(10^{-4}\) to \(10^{-3}\)

  2. Batch size: Limited by GPU memory, typically 32-128

  3. Block size: \(144\times360\) provides good trade-off

  4. Number of blocks: 12 per epoch for global coverage

  5. Weight decay: \(10^{-6}\) for regularization

Monitoring and Logging

  • Loss curves: Training and validation loss

  • Metrics: MAE, RMSE, R² on validation set

  • Visualizations: Sample predictions during training

  • Checkpoints: Save best model and regular intervals

Early Stopping

Training stops when validation loss doesn’t improve for specified number of epochs (typically 10-20).

Multi-GPU Training

  • Data Parallel: Split batches across GPUs

  • Model Parallel: Split model across GPUs (for very large models)

  • Distributed Data Parallel: Synchronized gradients across nodes

Reproducibility

  • Random seeds: Fixed for reproducibility

  • Configuration saving: Full config saved with each run

  • Version control: Code and environment specifications

  • Checkpointing: Model states saved at regular intervals
